TP4056 Lithium Battery Charger Module

TP4056 Lithium Battery Charger Module

TP4056 Lithium Battery Charger Module. Get the original products at the most affordable price at GadgetoZ BD and enjoy the quality with the promise of the best customer service in Bangladesh.

Important Reminder:

Before using the charging protection board, ensure that you remove any existing battery protection board from your battery. Failure to do so may result in improper operation during use.

Module Performance:

• Input Voltage: 4.35-6V (Recommended: 5V)
• Charge Cut-Off Voltage: 4.2V ± 1%
• Maximum Charging Current Output: 1000mA
• Battery Overcharge Protection Voltage: 4.28V
• Battery Overcharge Lifting Voltage: 4.00V
• Battery Discharge Protection Voltage: 3.0V
• Battery Discharge Termination Voltage: 3.2V
• Over-Current Protection Current: 3A

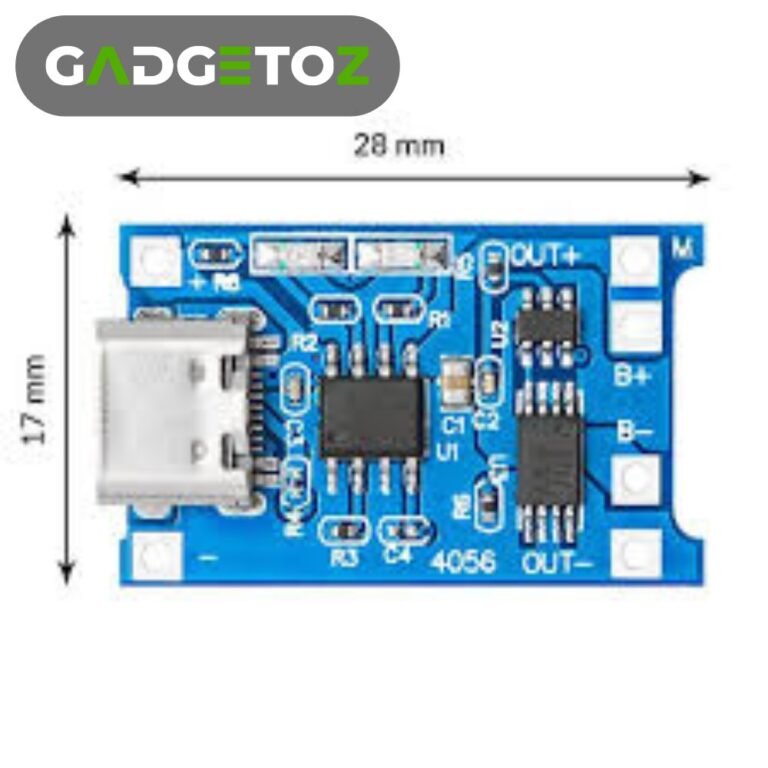

• Board Size: Approximately 2.5 x 1.65 cm

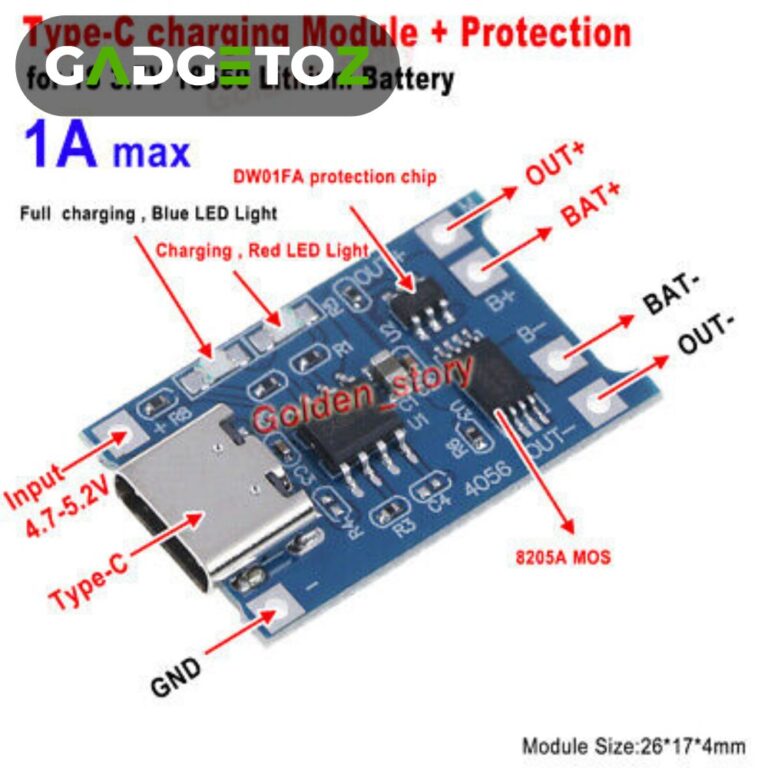

• Light Indicators:
  • No Load: Light is off.
  • Charging: Red light.
  • Fully Charged: Green light.

This module offers reliable protection for your battery by managing charge and discharge cycles, ensuring safe and efficient operation.
